Traditional UV technology compare UV LED curing technology
Conventional UV technology has beed used for over 30 years , with the shortcomings of high energy consumption ,
high heat and high cost that increasingly reflected .
UV LED curing technology in the printing is booming , its better economic benefit , system capacity ,effeicient performance
and environment benefinit are compelling .
YM's UV LED curing technology provides a ideal choice for the curing of digital ,
silk screen , flexography, offset printing , coating and other printing inks .
we devote ourselves to UV LED business,and advancing greener , cheaper and high efficient ink curing technology as well .
YM's entire serial products cover the whole printing industry , and the led chips wavelengths contain 365nm 385nm, 395nm and 405nm , we can provide accurate design
for more dimensions and specifications.

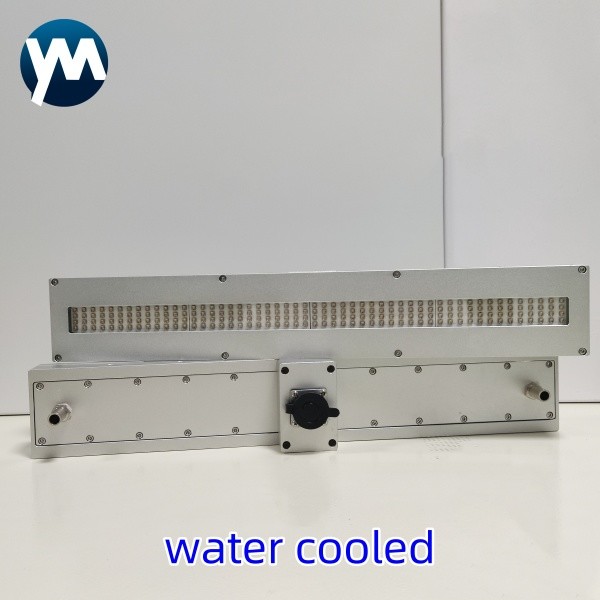

UV LED Curing System 600W Product Advantages
1. Accept customization
2. Energy saving: save 80% electrical energy than Mercury lamp
3. UV output adjustment: From 1% to 100%
4. Multiple control modes: Constant current, pedal control, intelligent optical and manual modes
5: Photoelectric induction, instant on/off, no preheating required.
6: Low energy consumption, just 20% of the ordinary uv lamp
7: No mercury, No Ozone, eco-friendly
8: Cold light source, low temperature
9: Stable output, high uniformity.
Specification of UV LED Curing System
| Item |
UV LED Curing System 600W for printing |
| Power |
600W |
| Color |
UV |
| Diode type |
6868/6565 smd type |
| Size |
430mm*70mm*33mm |
| Luminous Size |
400mm*20mm |
| Chip Material |
LG,Seoul,Epileds |
| Wavelength |
365nm,385nm,395nm,405nm |
| Cooling scheme |
Water-cooled |
| Application |
Apply in various printing industries, painting, and glue. |
| optional |
Single lamp, lamp + power supply, lamp + power supply + water tank |
| Lifespan (hours) |
20000 hours |
| Warranty |
1 year |
| Place of Origin |
Shenzhen, Guangdong, China |
FAQ
Q1. Can all the products be customized?
A: We are the factory of making UV led lamp,UV led system. All the our products can be made by the details you provide.
Q2. What is the outer package of the product?
A: carton packing or wooden packing.
Q3. Processing cycle?
A: Some of products we have in stock. Usually need about 3-15days to maked.
Q4. Order quantity?
A: Customized UV Lamps Usually is 1 pieces.
Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
If you have other needs, please contact us to provide you with the best solution.
Thank you for your attention.
