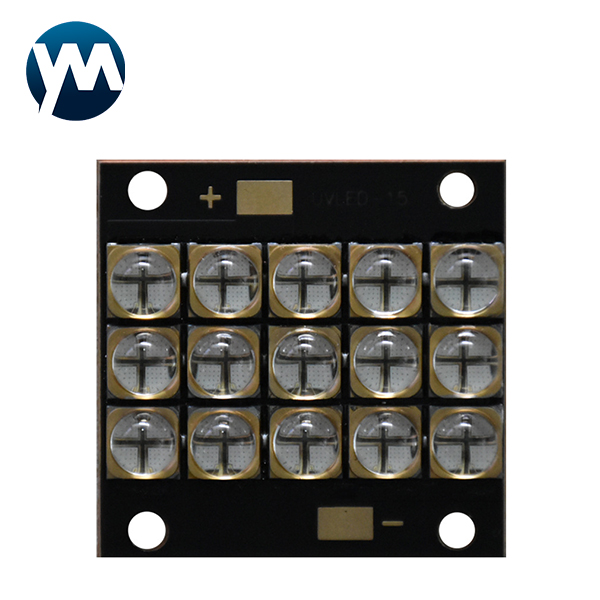

UV Light Module 150w UV LED Curing Lamp Quartz Lens High Power UV LED

  • 1
  • 2
  • 3

Brand Name : YM

Model Number : UV Light Module 3535

Certification : High-tech Enterprise Certificate

Place of Origin : CHINA

MOQ : Negotiate

Price : Negotiate

Payment Terms : T/T

Supply Ability : 100000

Delivery Time : 7-10 work days

Packaging Details : Carton

Product Name : UV Light Module 3535

Power : 150W

Module Size : 35mm*35mm*2.0mm

Luminous Size : 35mm*20mm

Voltage : 32-38V

Current : 3-4.5A

LED Chips : Optional(LG/Epileds/ Seoul)

Encapsulation process : 2.0mm High temperature quartz lens package

View Angle of the Lens : 30,60,120 degree

Warranty : 2 Years

Contact Now

UV Light module 150w uv led curing lamp quartz lens high power uv led

UV Light Module Product Description
The UV LED Module can be applied with either Water-cooling or wind-cooling method.
It is recommended to use water cooling for heat dissipation, which can better protect the life of the lamp beads.
Various powers, sizes, and circuits can be customized according to your requirements, including mixed bands.
Apply in various printing industries, painting, and glue.

Product Name

UV Light Module 3535

Power

150w

Color

UV
Number of lamp beads 15 pcs

Diode type

6565/6868 smd

Lens Material of Diode

Silica gel or quartz

View Angle of the Lens

30, 60, 120 degree

Module size

 35mm*35mm*2.0mm
Luminous Size 35mm*20mm

Wavelength

365nm,385nm,395nm,405nm

Voltage

32-38V

Current

3-4.5A

Chip Material

 LG,Seoul,Epileds

Encapsulation process

2.0mm High temperature quartz lens package

Lifespan (hours)

20000-30000

Warranty

2 years
Application Apply in various printing industries, painting, and glue.

Place of Origin

Shenzhen, Guangdong, China

UV Light Module 150w UV LED Curing Lamp Quartz Lens High Power UV LEDUV Light Module 150w UV LED Curing Lamp Quartz Lens High Power UV LEDUV Light Module 150w UV LED Curing Lamp Quartz Lens High Power UV LED

FAQ
Q1. Are you a factory?
A. Yes! We are factory in Shenzhen. We have been producing UV LED products for seven years.
Q2: What is the MOQ?
A: Our MOQ is 1 unit. We can do OEM/ODM if you need.
Q3. What is your main products?
A. UV LED Lamp Bead,UV LED Module,UV LED Single Light,UV LED curing equipment.
Q4: How many years of warranty of your products?
A: We offer 2 year warranty time. If there is any problem during the warranty time, please contact us
and we will change or repair them for you.
Q5: How many days do you need for preparing order?
A: We need 5-7 days for normal order, Custom product cycle is 15-20 days.
If you have other needs, please contact us to provide you with the best solution.
Thank you for your attention.
